C075X1/4TC
ROUND/OVER 4.8MM RAD X 12.7MM CUT
CRAFT TC
£34.86 EX. VAT
£41.83 INC. VAT
Stock:
Next day delivery ends in
00:00:00
Next day delivery available tomorrow
Same-day delivery within the Manchester M60 circuit (order by 10am)
DESCRIPTION
CRAFT TC

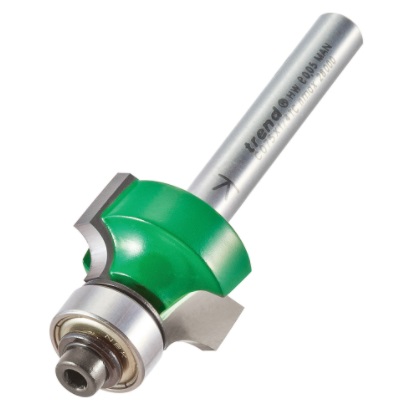

Trend C075X1/4TC Rounding over 4.8mm radius x 12.7mm cut Self-guiding cutters for rounding over edges do not require a side fence.
They are supplied with two bearings.
Use the larger bearing for a round-over.
If the cutter is lowered, a top quirk can be produced.
Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.
D= 7/8 inch
D= 22.2 mm
C= 1/2 inch
C= 12.7 mm
B= 9.5 mm
B2= 12.7 mm
R= 3/16 inch
R= 4.8 mm
Shank Diameter= 1/4 inch
They are supplied with two bearings.
Use the larger bearing for a round-over.
If the cutter is lowered, a top quirk can be produced.
Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.
D= 7/8 inch
D= 22.2 mm
C= 1/2 inch
C= 12.7 mm
B= 9.5 mm
B2= 12.7 mm
R= 3/16 inch
R= 4.8 mm
Shank Diameter= 1/4 inch
